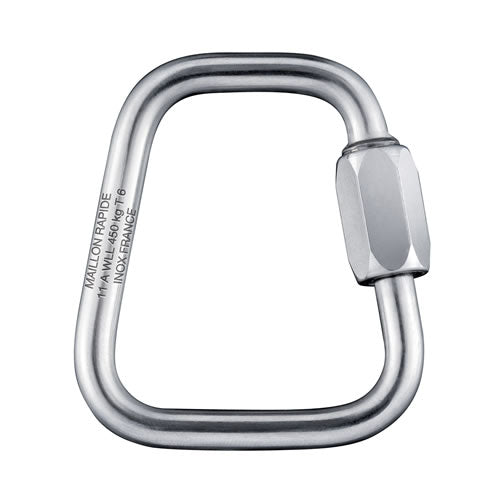

Maillon Rapide Trapeze Lock Link Inox Ø 6 mm

Stainless-steel trapeze quick link for compatible systems where the asymmetric shape better matches two different webbing or attachment widths.

Typical applications

• Compatible tandem spreader-bar connection arrangements
• Compatible harness shoulder or reserve-bridle attachment arrangements requiring trapeze geometry

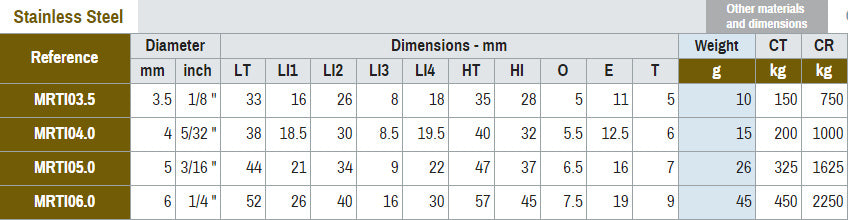

Specifications

• Material: stainless steel
• Diameter: 6 mm
• Inner height: 45 mm
• Top width: 30 mm
• Bottom width: 40 mm
• Gate opening: 7.5 mm
• Breaking load: 2,250 kg
• Working load: 450 kg
• Weight: 45 g

Reserve and tandem connection hardware is installation-specific. Confirm the correct link type, orientation and dimensions against the relevant equipment manufacturer's instructions.
