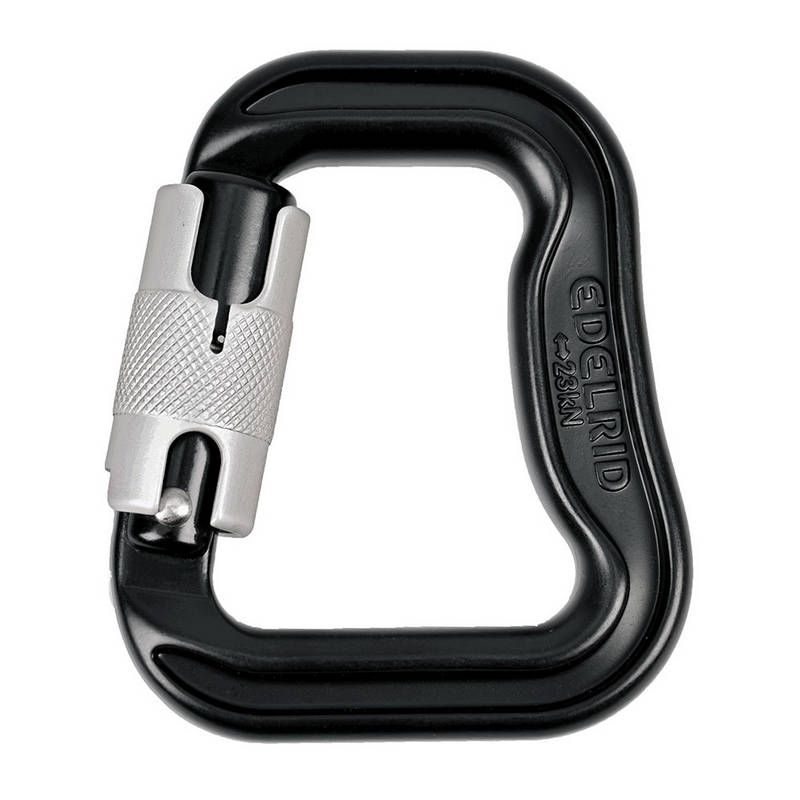

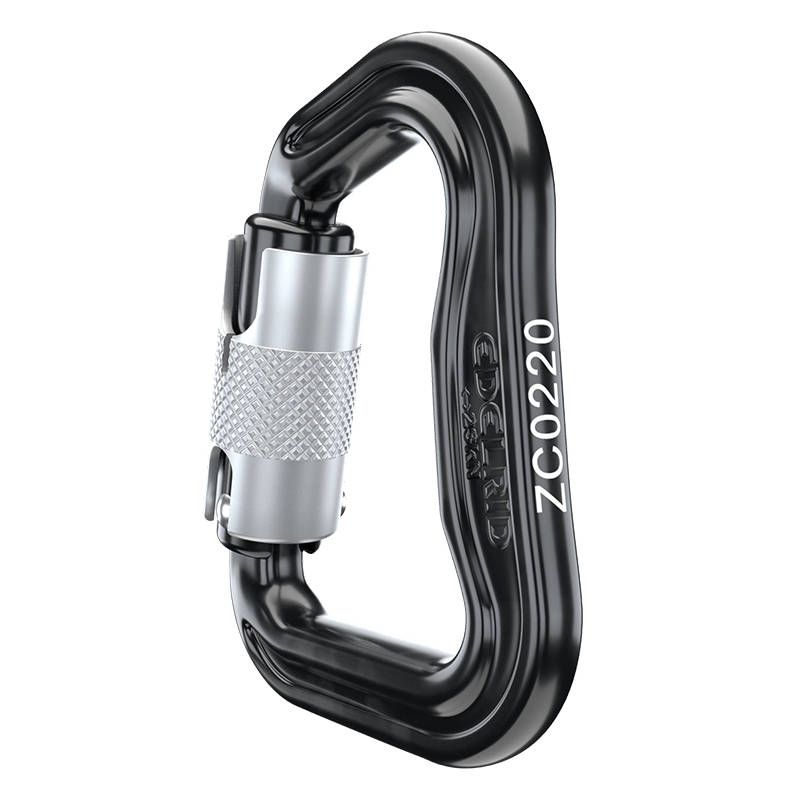

Edelrid ALIAS 40 mm Twist-Lock Carabiners

Lightweight automatic paragliding carabiners designed to accommodate wider harness webbing while maintaining a compact aluminium construction.

Specifications

• Sold as a pair
• Weight: 58 g each
• Height: 80 mm
• Width: 65 mm
• Gate opening: 12 mm
• Major-axis strength: 23 kN
• Aluminium construction
• Twist-lock gate
• Harness webbing: up to 40 mm
• Riser webbing: up to 20 mm
• Individual serial number for traceability

Design

The H-profile body and double S-shaped geometry are designed to manage load efficiently and reduce unwanted cross-loading. Rounded/keylock-style contact geometry supports clean handling around harness and riser webbing.

Cloudbase note

Match the carabiner width and geometry to the harness manufacturer's specification. Connection hardware should be inspected regularly and replaced in accordance with the manufacturer's service-life guidance or sooner following damage, abnormal loading or impaired gate operation.
