AirDesign RONIN
PRODUCT OVERVIEW
RONIN – #bladerunnin

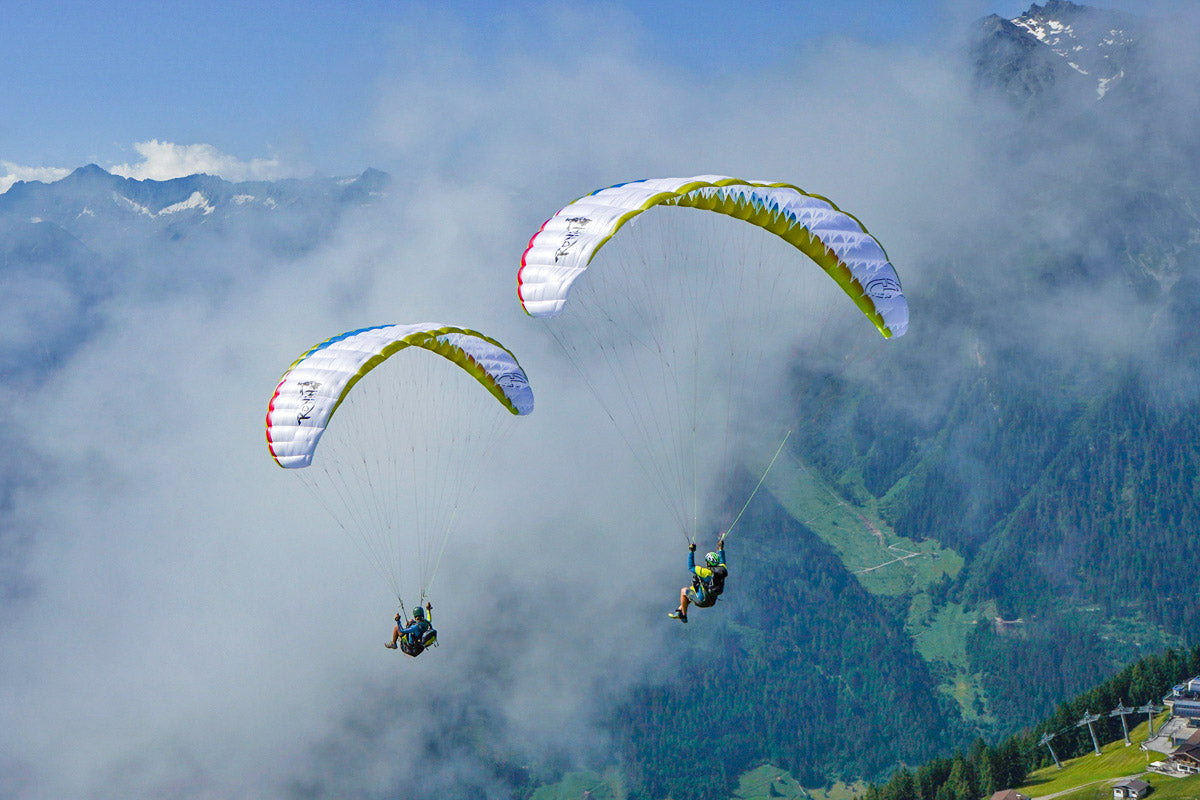

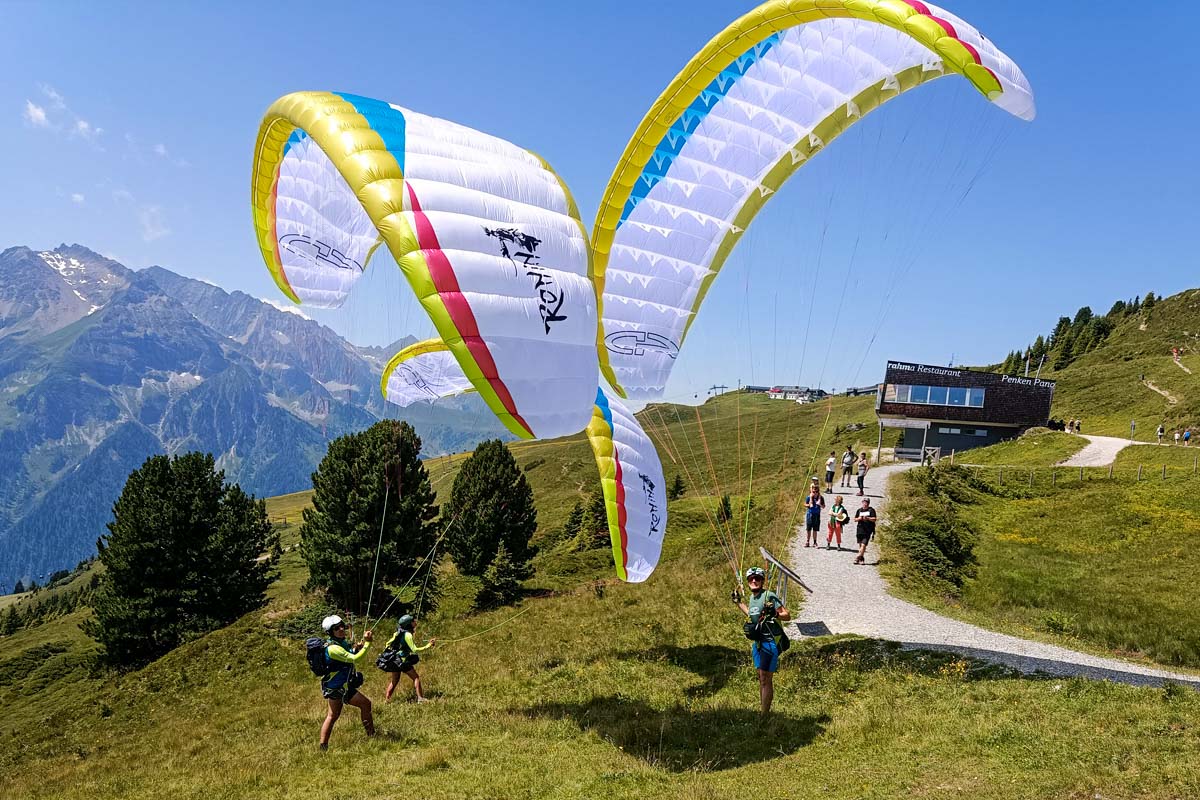

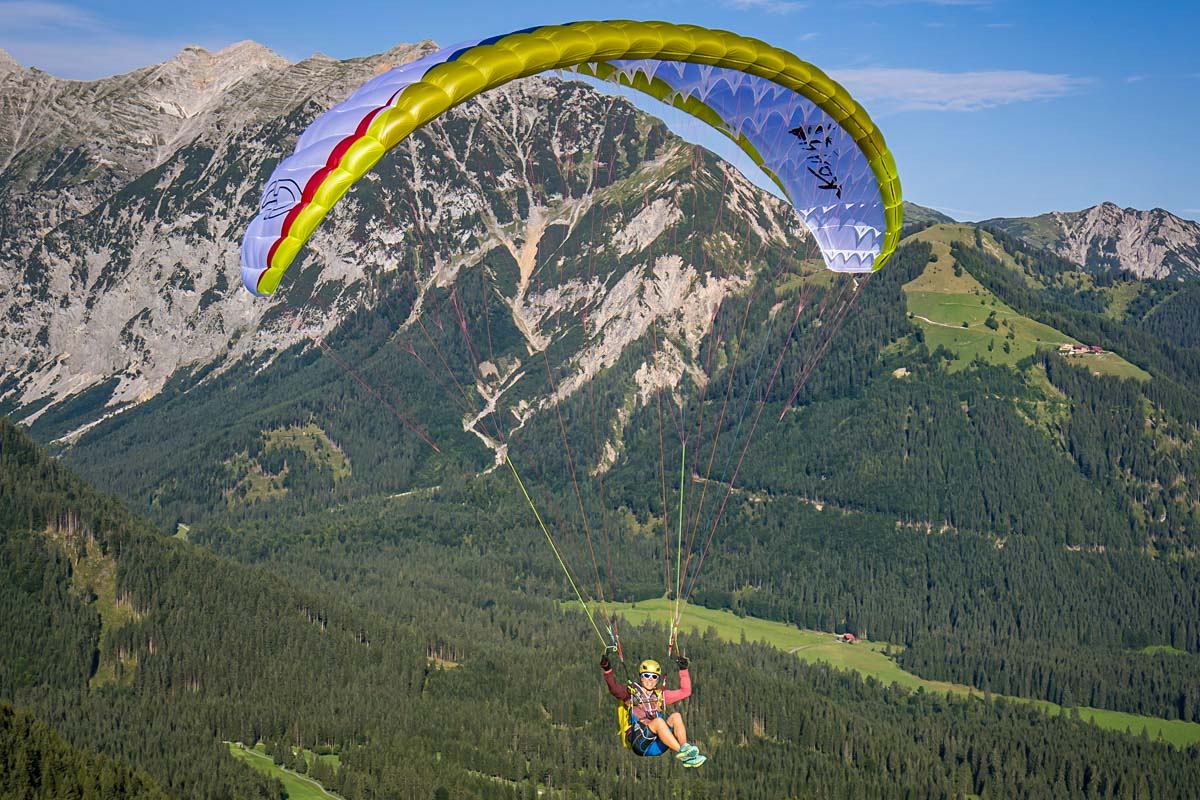

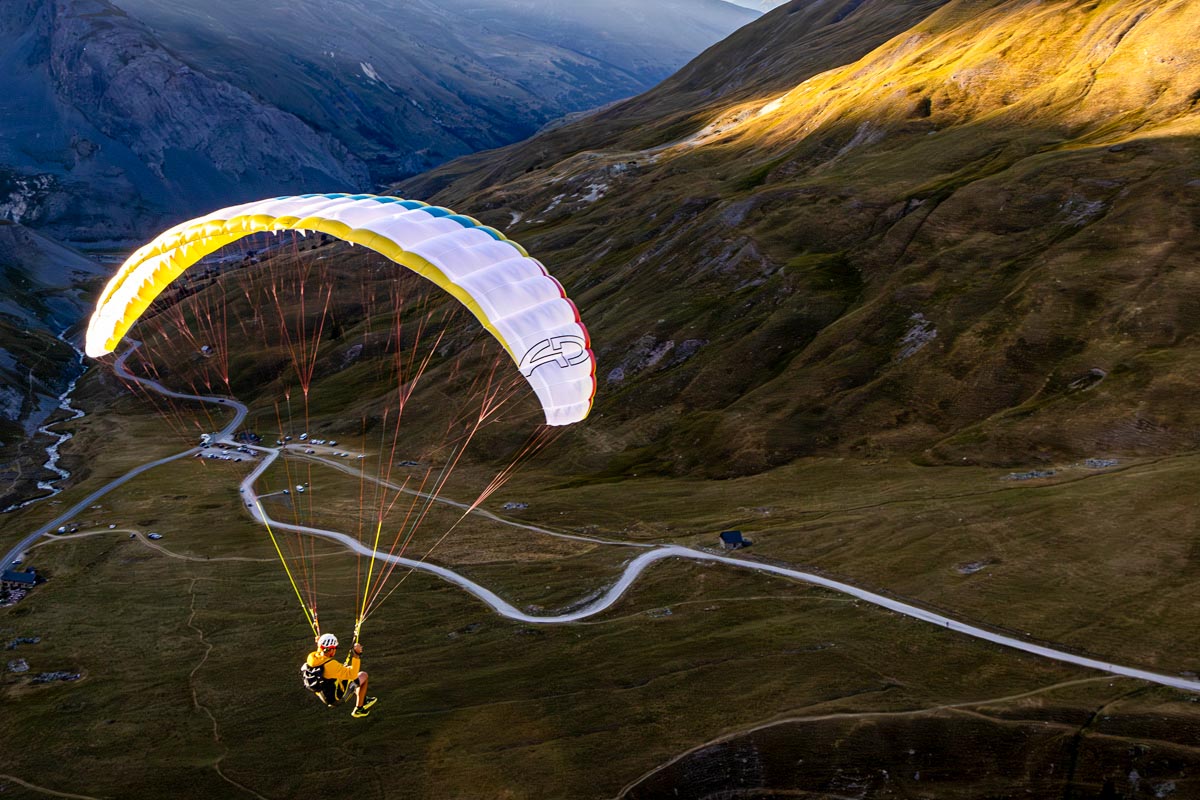

Ultralight single-surface run-and-fly wing

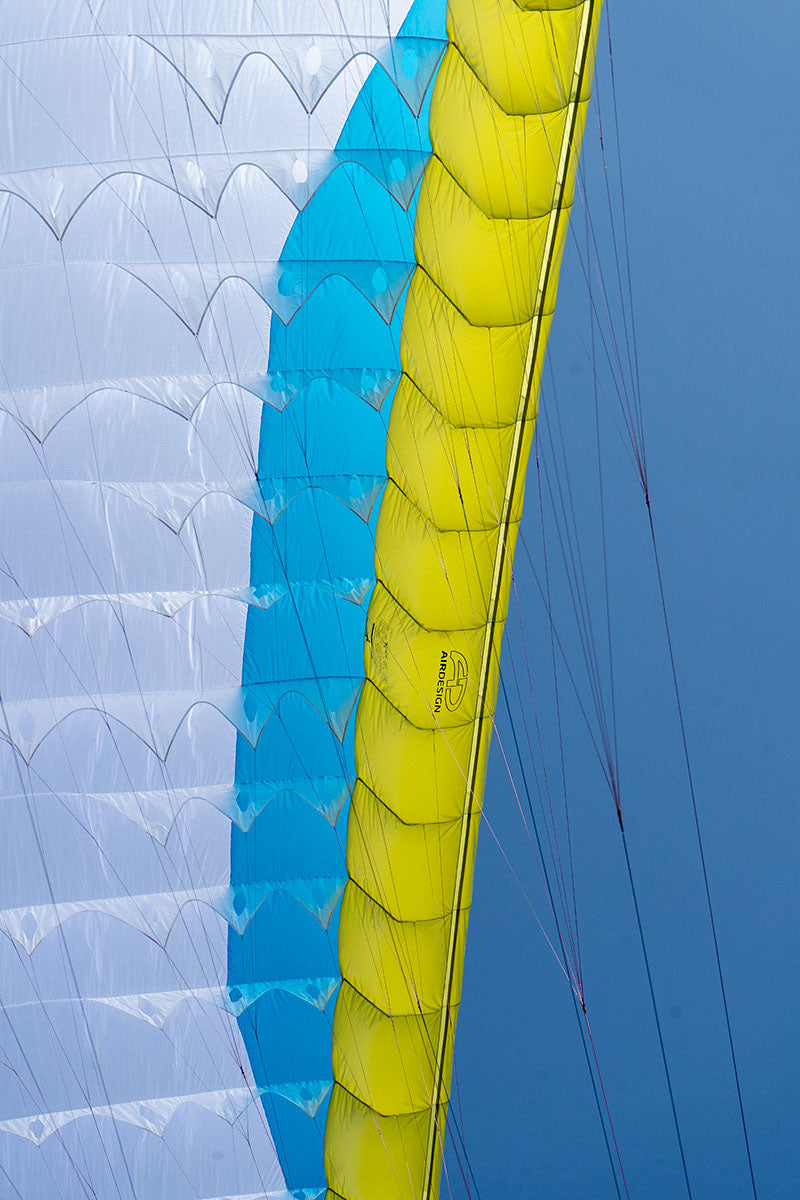

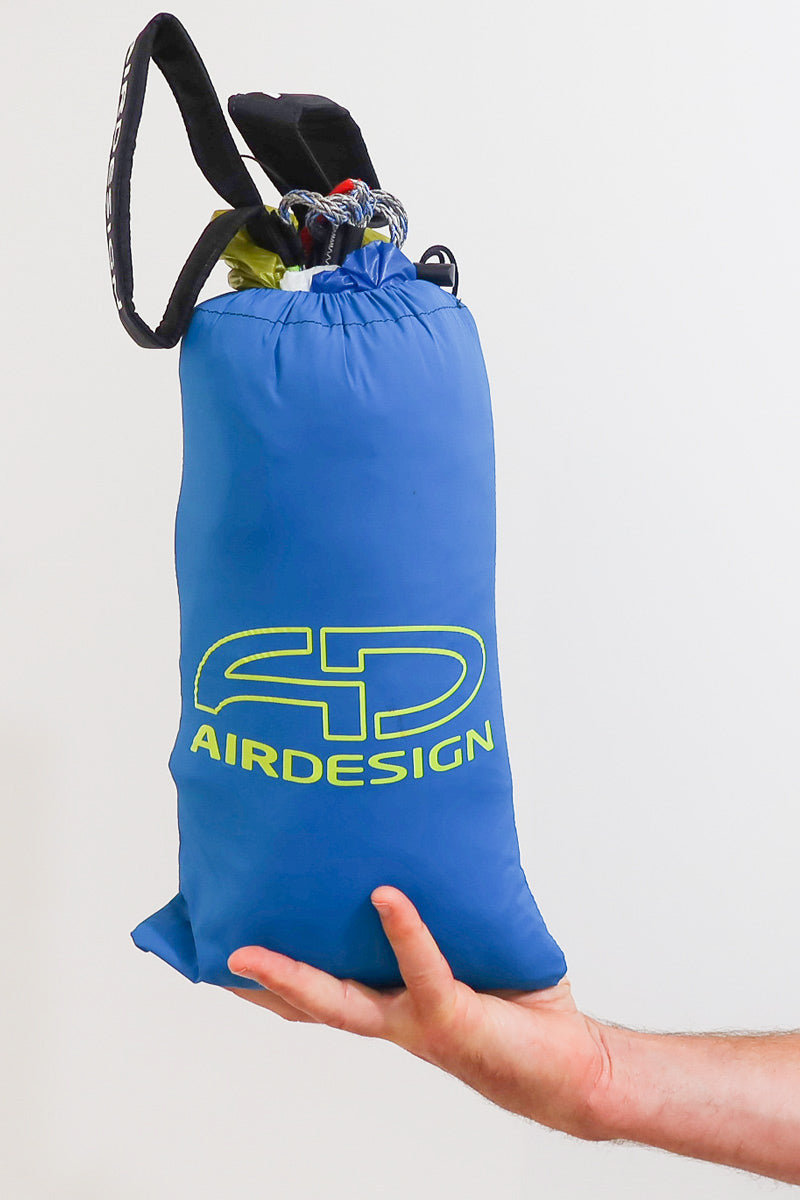

Starting at just over 1 kg, the RONIN is AirDesign’s minimalist single-surface wing for pilots who prioritise extremely low weight, tiny pack volume and fast run-and-fly missions. Compared with the UFO, it reduces ribs, lines and nose structure, uses lightweight double-coated fabric and is designed to fly at higher loadings.
Cloudbase perspective
The RONIN is a specialist tool, not simply the lightest choice for ordinary recreational flying. Size and loading change its character substantially: the larger sizes can sit within EN-B flight-test ranges, while the smaller 12 and 14 carry EN-C flight-test certification and become progressively more dynamic as loading increases. For pilots primarily seeking a forgiving lightweight single-surface wing, the UFO deserves comparison; the RONIN is for missions where minimum carried weight and a faster, more dynamic result justify the trade-off.
Technical Specifications
| Size | 12 | 14 | 16 | 18 |
|---|---|---|---|---|
| Area flat (m²) | 12.18 | 13.80 | 16.06 | 18.53 |
| Area projected (m²) | 10.32 | 11.70 | 13.61 | 15.71 |
| Span flat (m) | 7.78 | 8.28 | 8.94 | 9.60 |
| Span projected (m) | 6.14 | 6.54 | 7.06 | 7.58 |
| Aspect ratio flat | 4.97 | 4.97 | 4.97 | 4.97 |
| Aspect ratio projected | 3.66 | 3.66 | 3.66 | 3.66 |
| Cells | 27 | 27 | 27 | 27 |
| Weight (kg) | 1.03 | 1.16 | 1.30 | 1.45 |
| EN 926-2 take-off weight / certification | 55–68 / C | 60–75 / C | 65–82 / B | 70–90 / B |
| Extended EN 926-1 weight | 68–95 | 75–100 | 82–110 | 90–120 |
Take-off weight is total flight mass including pilot, glider, harness, reserve and equipment. EN 926-2 refers to flight testing; the extended EN 926-1 range is load/shock tested rather than an extension of the flight-test classification.
Materials and Technical Features

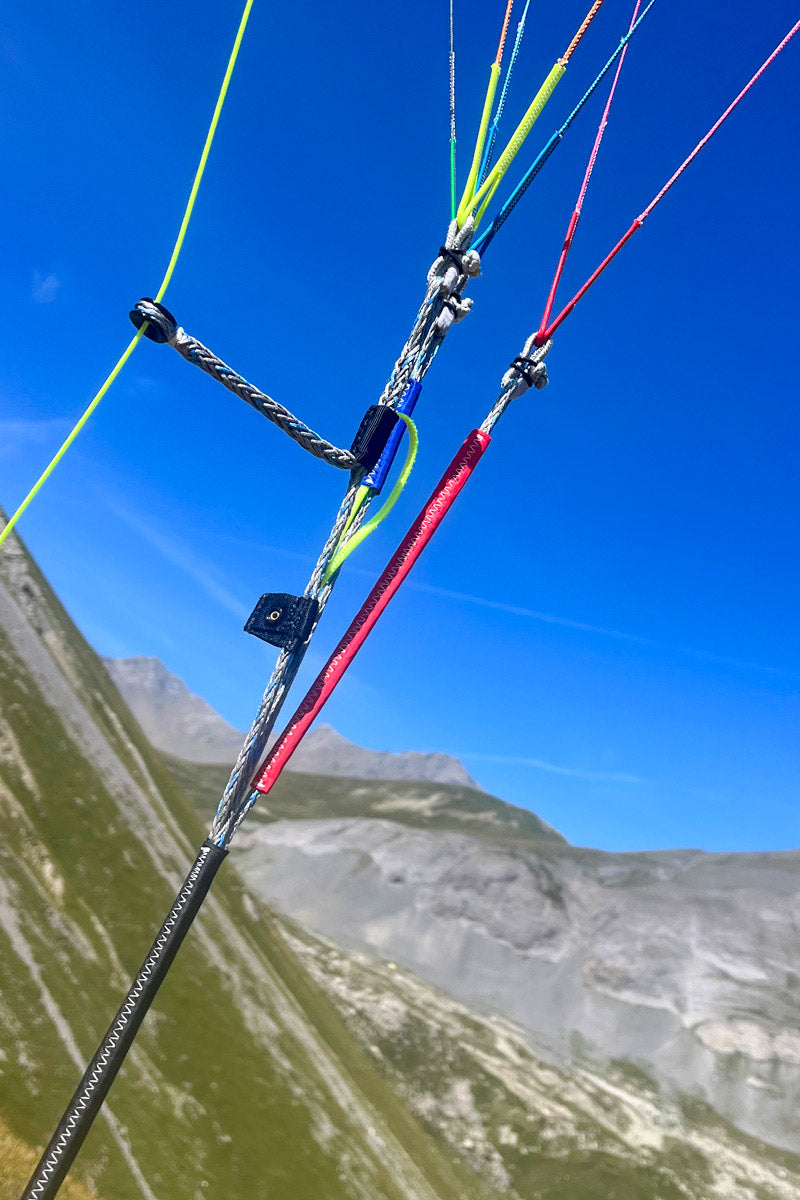

Sail: Dominico DOKDO-10DSF double-coated 25 g/m². Lines: Edelrid 8001/U. Risers: Edelrid Taurus approximately 3.7 mm Dyneema. Connections: AirDesign Soft-Links.

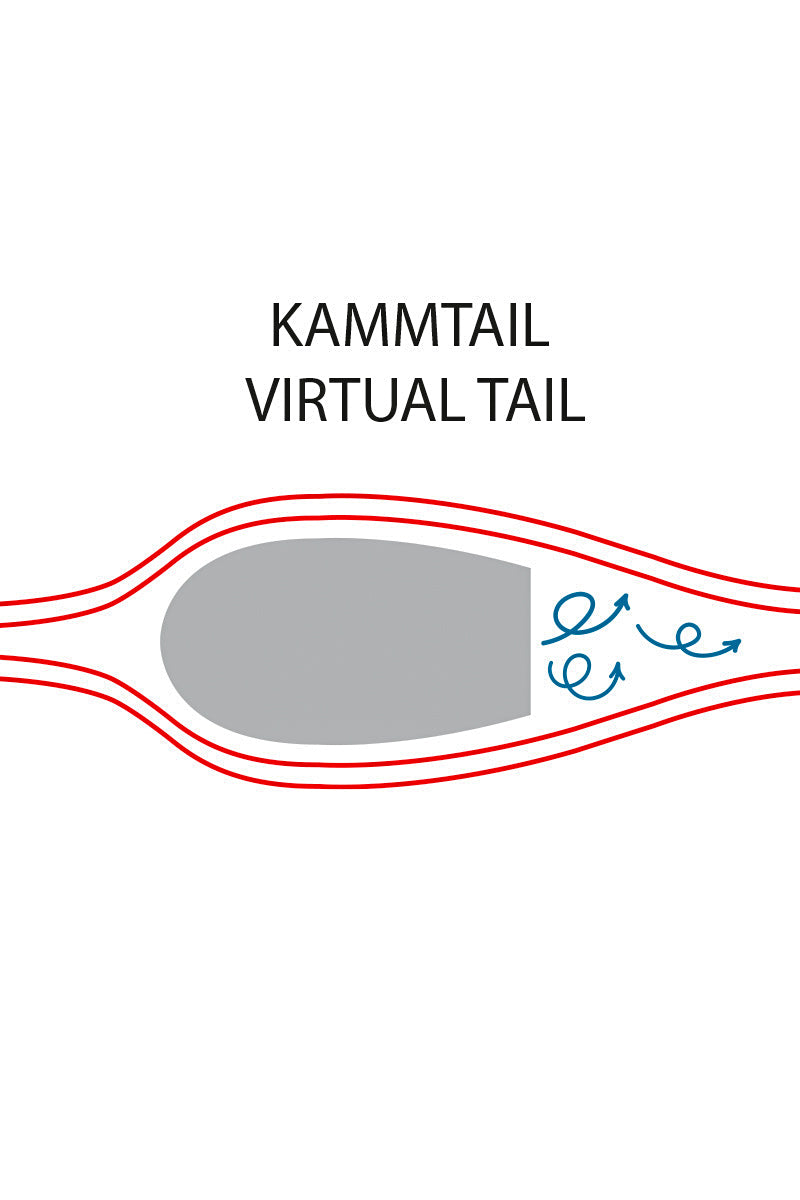

SUPERLIGHT · NITINOL RODS · 3D-CUT · RAZOR EDGE · KAMMTAIL PROFILE · HALF CHORD CELLS · SOFT LINKS · UNSHEATHED COLORED LINES · SUPERLIGHT DYNEEMA RISERS · B/C CONTROL
Contact Cloudbase before selecting a RONIN size if you intend to fly in the extended loading range or are deciding between it and the UFO.
