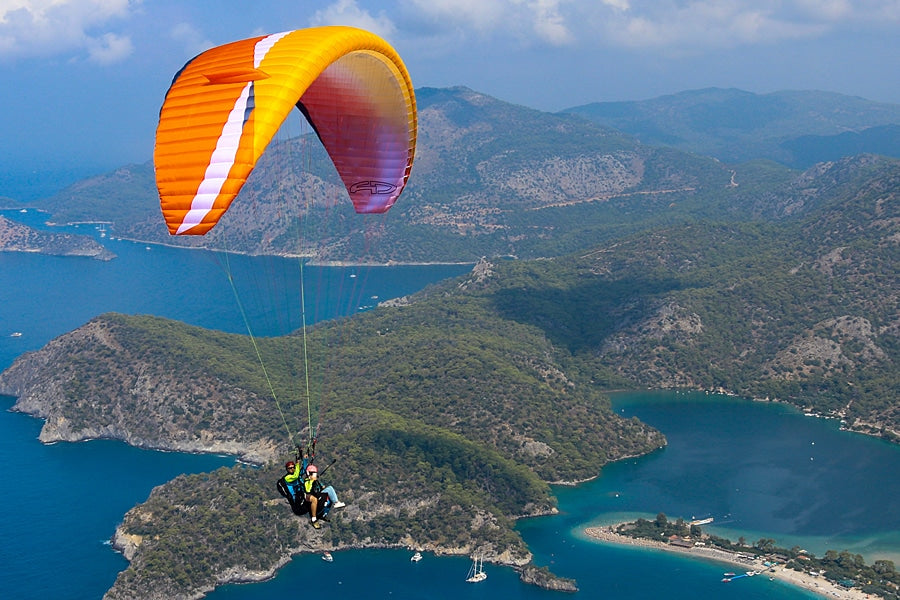

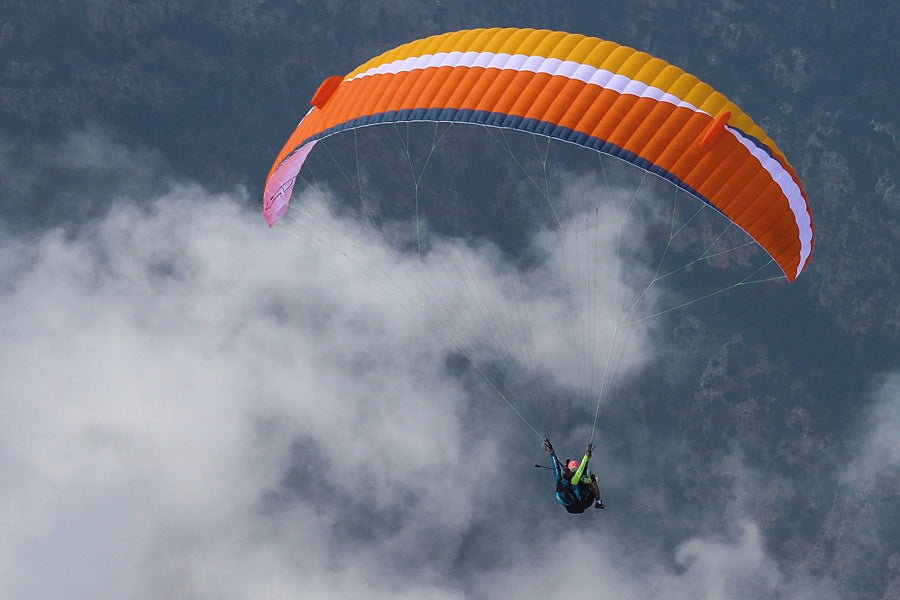

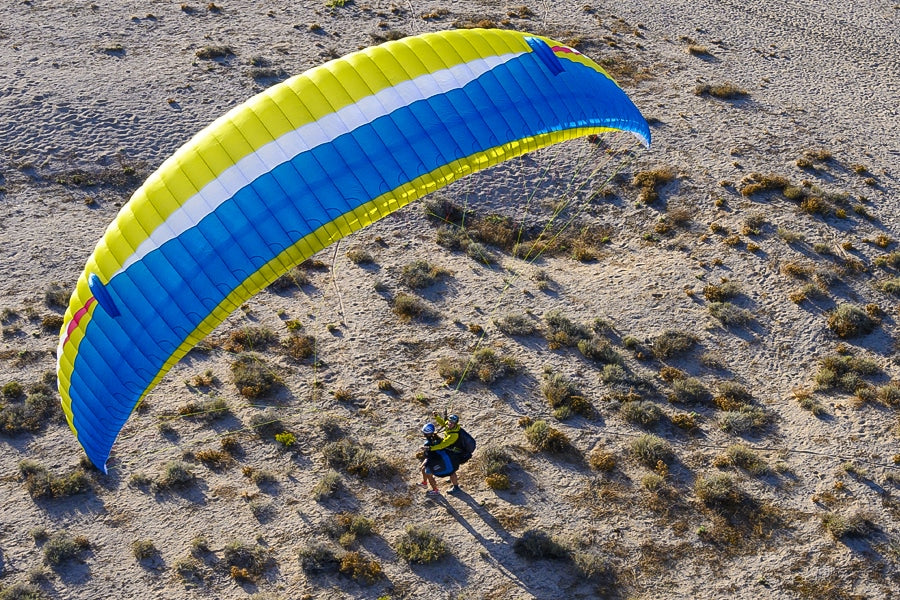

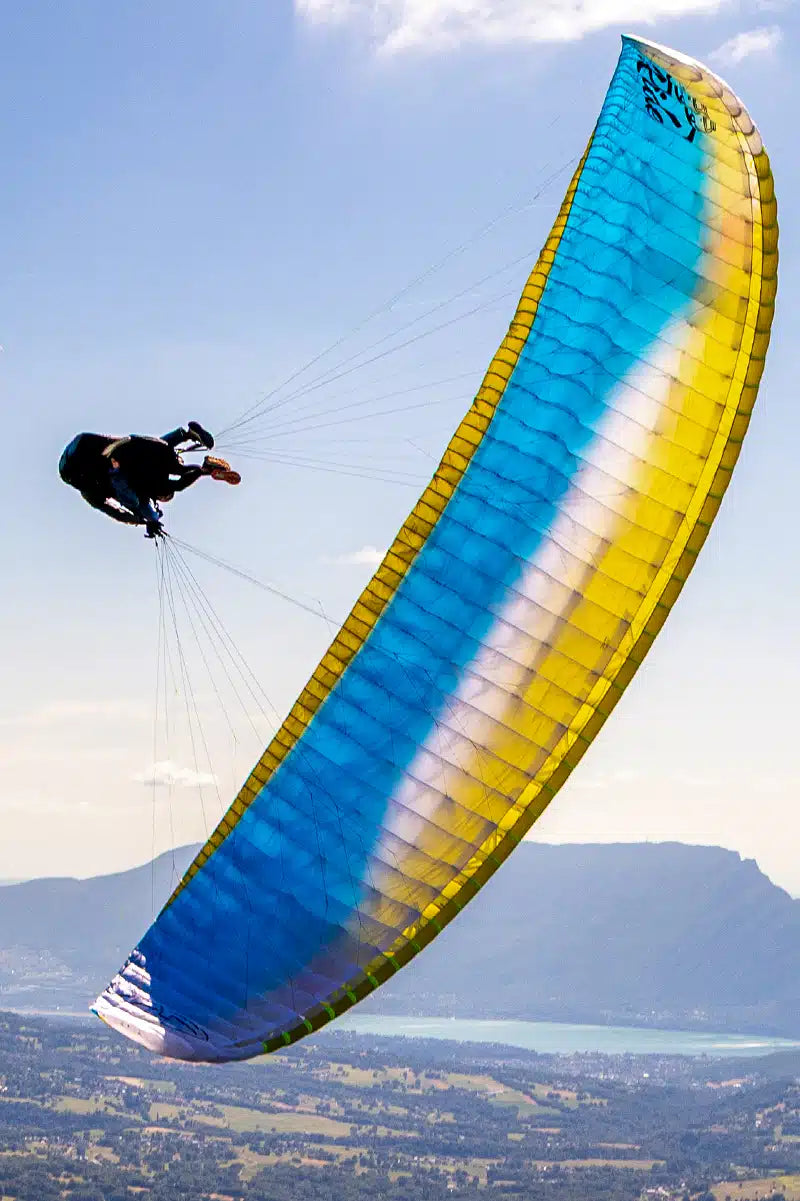

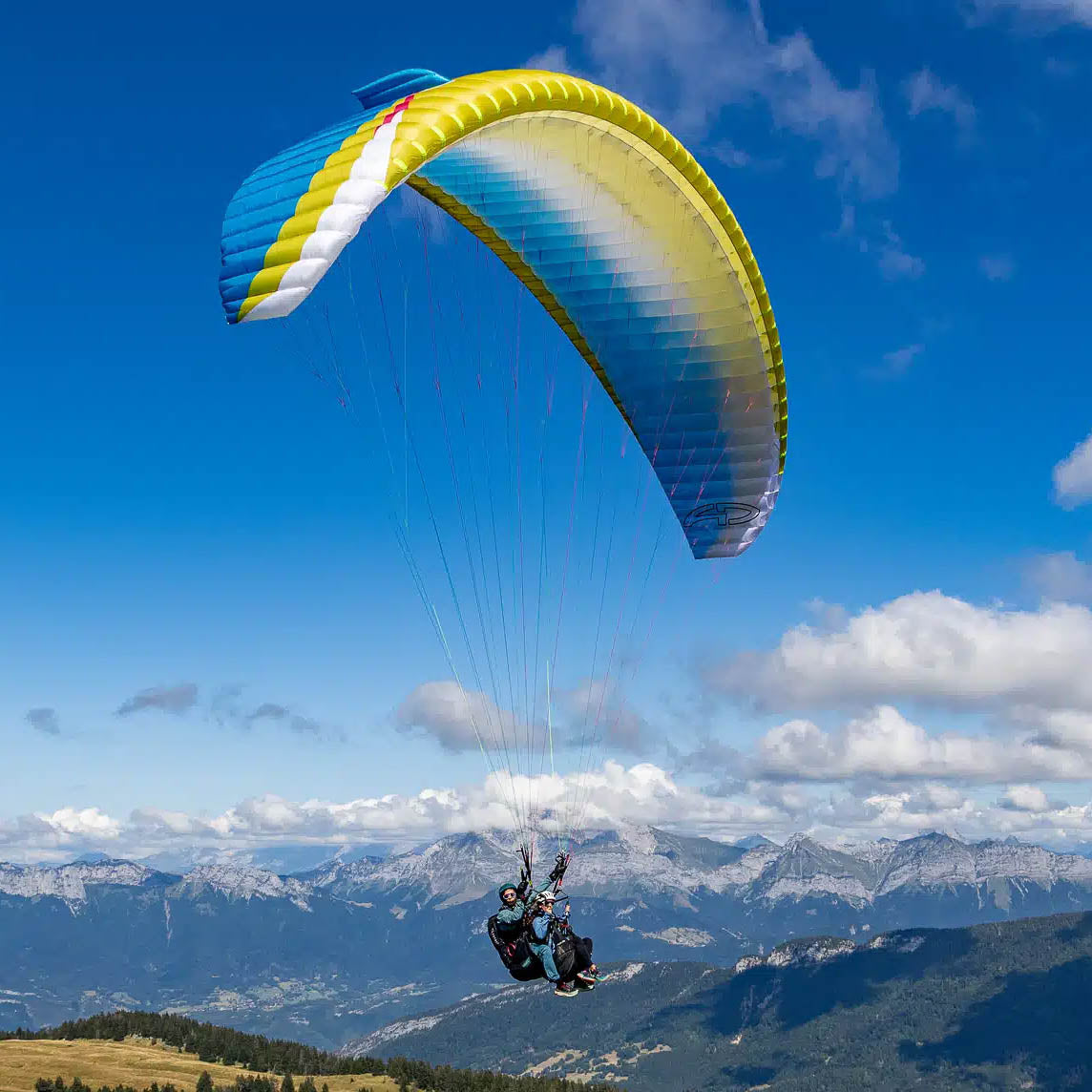

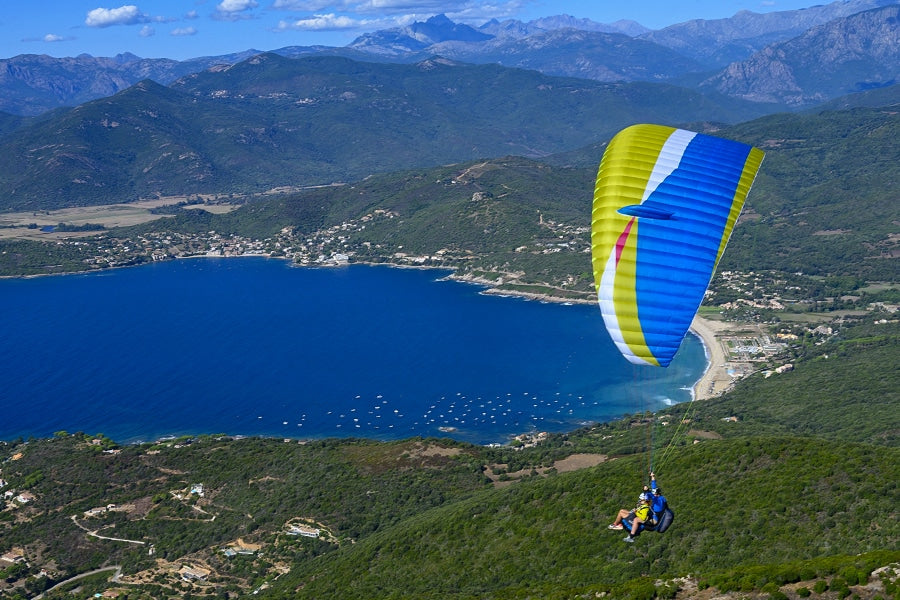

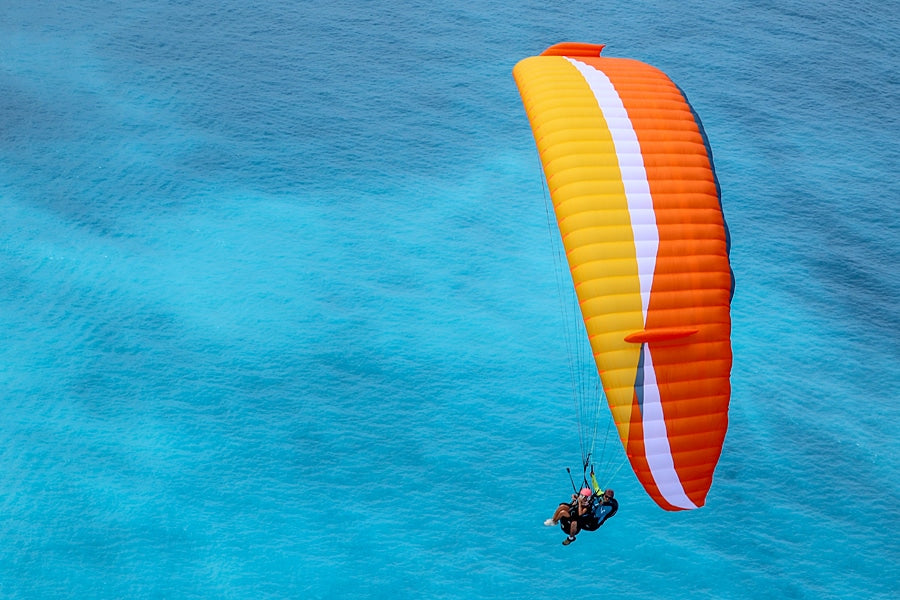

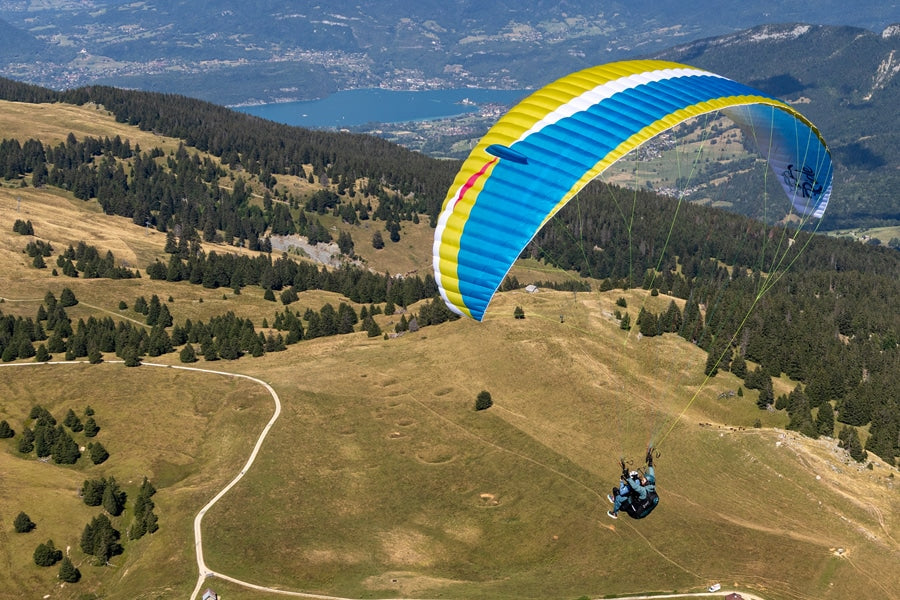

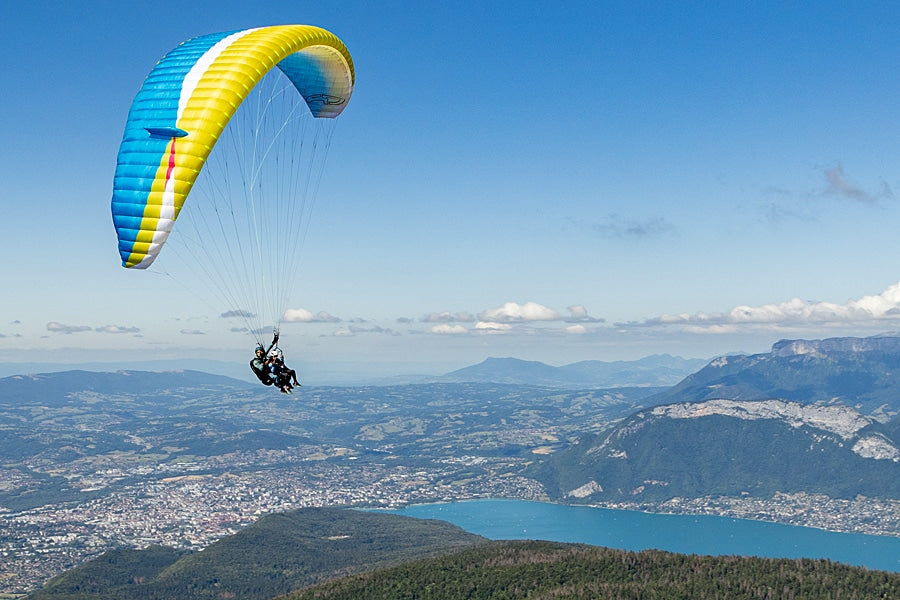

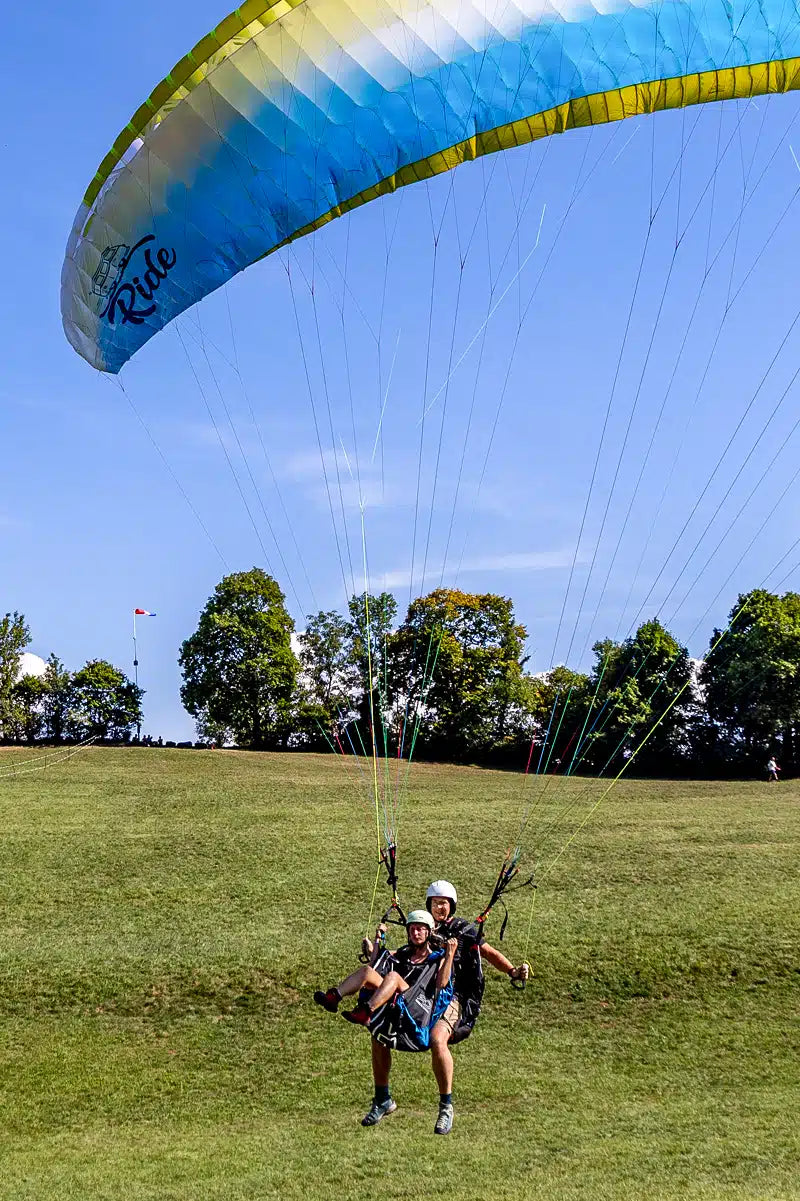

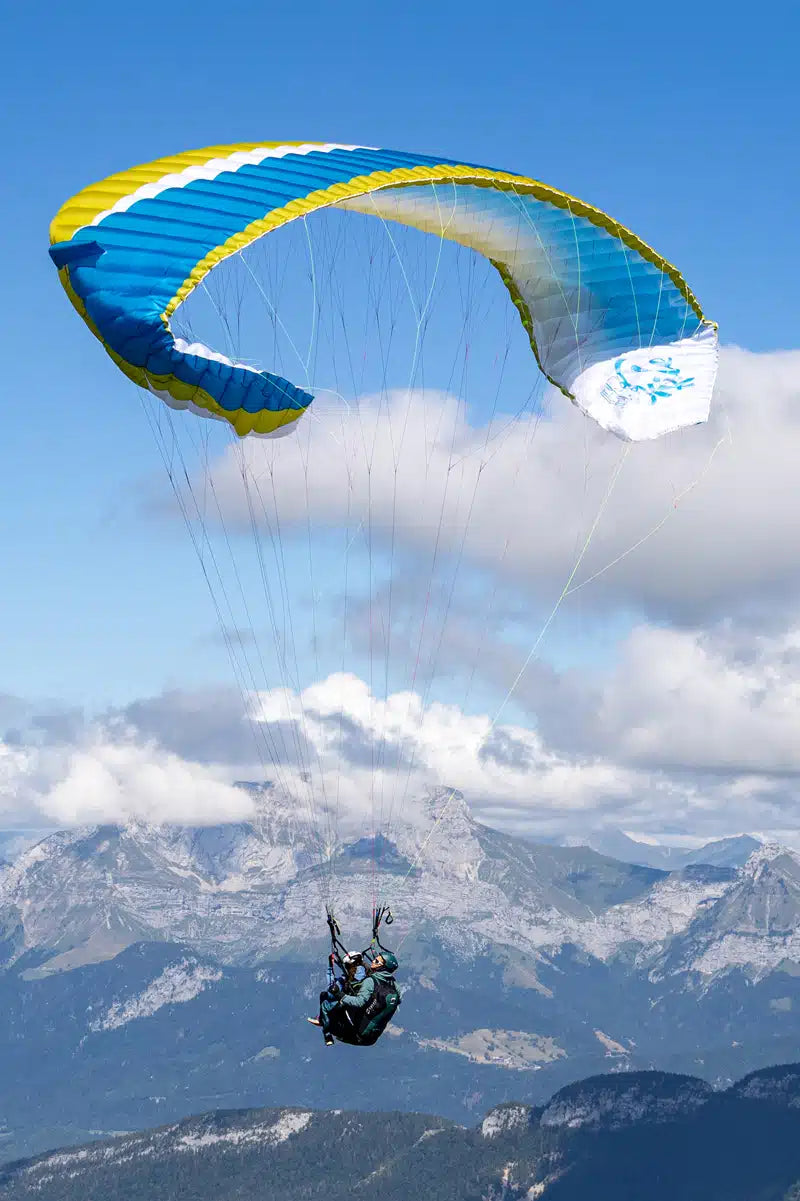

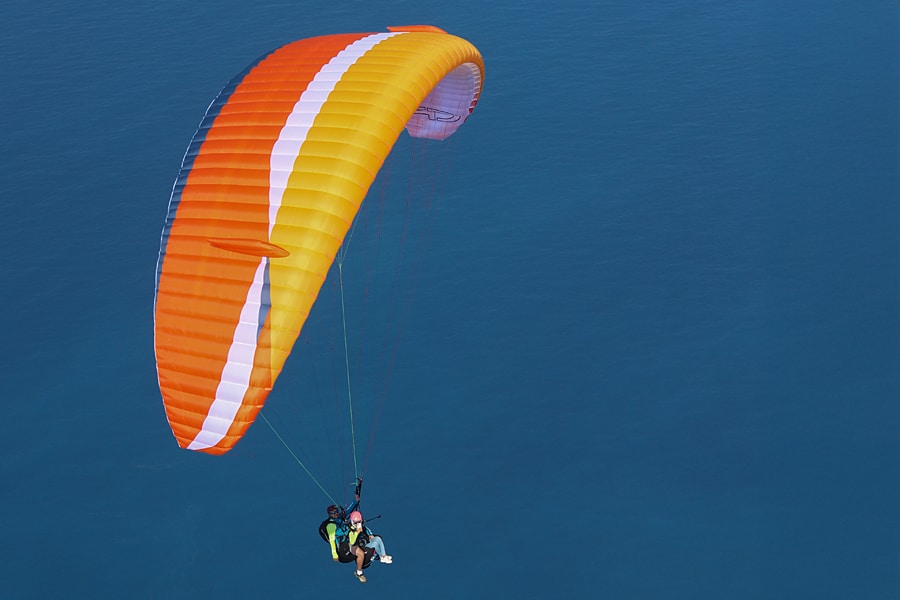

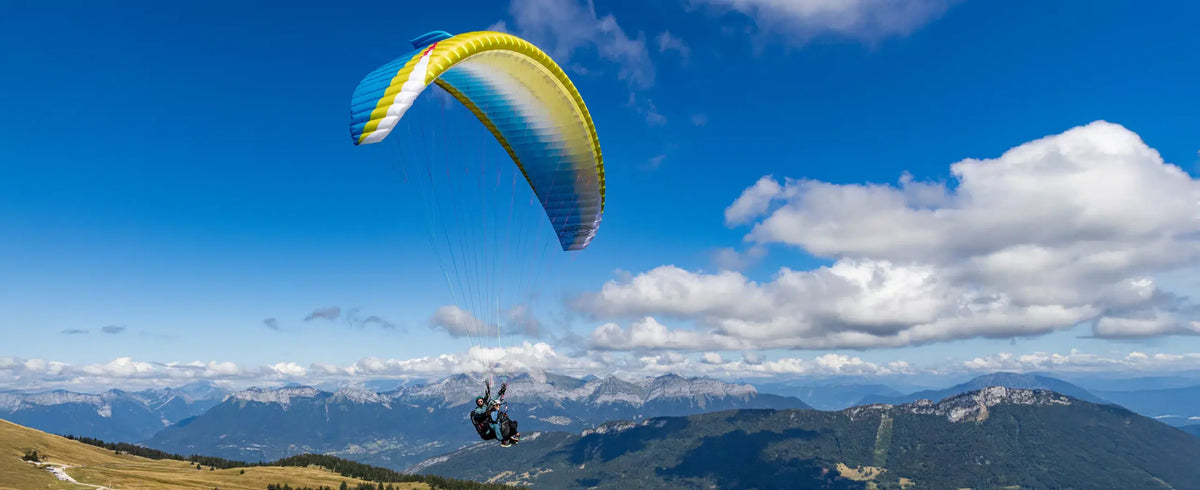

AirDesign RIDE4 EN-B Tandem
PRODUCT OVERVIEW
RIDE 4 Tandem LTF/EN B #SameButDifferent
AirDesign’s professional tandem platform
The RIDE 4 is built as a working tandem wing rather than simply a scaled-up solo glider. AirDesign developed it around the repetitive demands that matter to commercial and instructional tandem pilots: inflation, early lift, manageable brake pressure, usable trim range, flare authority and durability across a wide passenger-weight range.
Cloudbase perspective
For tandem work, the useful question is how a wing behaves over an entire operating day, not how impressive one isolated specification looks. The RIDE 4’s two sizes cover overlapping but different all-up-weight ranges, so choosing between the 40 and 43 should reflect your typical pilot/passenger combination and operating conditions. Cloudbase can help work through that loading rather than defaulting to the largest size.
Main Design Concepts - RIDE 4
- Short Line Concept (SLC): reduced line length for quicker inflation, handling response and flare timing.
- New arc: designed to improve turn initiation and structural cohesion.
- 4-line concept: supports the profile and broad usable speed range.
- Inboard winglets: intended to improve roll behaviour and spiral recovery characteristics while retaining dynamic handling.
- Professional durability: coated cloth, nose protection, Nitinol rods, sheathed lines and an internal structure designed for repeated use.
Technical Specifications
| Size | M / 40 | L / 43 |
|---|---|---|
| Area flat (m²) | 39.98 | 42.55 |
| Area projected (m²) | 33.18 | 35.12 |
| Span flat (m) | 14.63 | 15.05 |
| Span projected (m) | 11.19 | 11.515 |
| Aspect ratio flat | 5.35 | 5.35 |
| Aspect ratio projected | 3.77 | 3.77 |
| Cells | 48 | 48 |
| Chord length (m) | 3.42 | 3.52 |
| Weight (kg) | 7.62 | 7.92 |
| Take-off weight (kg) | 110–220 | 120–235 |
| EN category | B | B |
Take-off weight is total flight mass including pilot, passenger, glider, harnesses, reserve and equipment.
Materials
Sail: Dominico Dokdo-30 DMF 43 g/m² top; Dominico N20 DMF / 2044 32 PS 32 g/m² bottom; Dominico 30 DFM / 2044 32 FM 32 g/m² ribs, V-ribs and straps.
Lines: Liros DSL / PPSL upper lines, Liros PPSL middle lines, Edelrid 2 7343 mains. Risers: 19 mm / 12 mm Cousin Trestec Aramid PES.
Technical Features
VORTEX HOLES · SHARK NOSE · JONCS NITINOL · 3D-CUT · RAZOR EDGE · WINGLET TECHNOLOGY · SLC
What comes in the box?
- Glider with option of hard or soft spreaders
- AirPack L concertina bag
- 2 spare AR3 big-ear lines
- Replacement trimmers
- Repair materials and AirDesign stickers
- AirDesign goodies
Rucksack is not included as standard. Contact Cloudbase for size selection and a suitable AirDesign rucksack or Fastpack.
