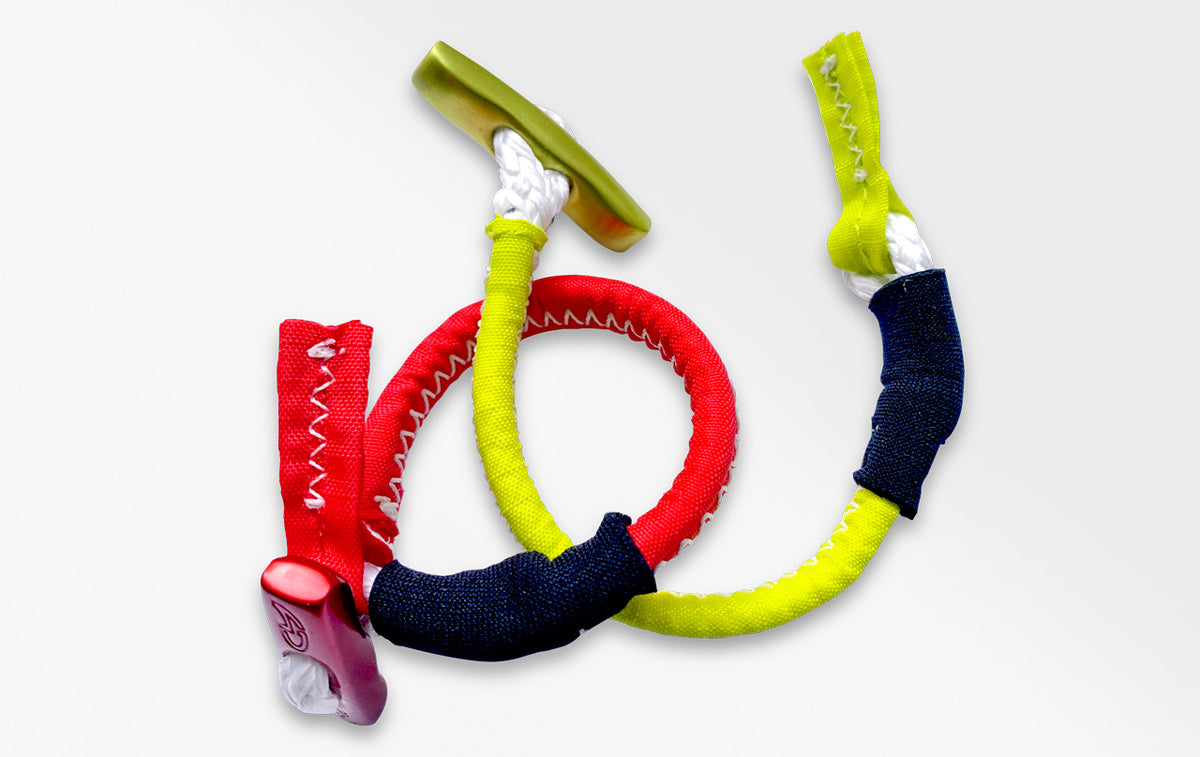

AirDesign AD Connect Soft Links (Pair)
PRODUCT OVERVIEW
AirDesign AD Connect Soft Links
Lightweight harness-to-riser connectors
AD Connects are Dyneema soft connectors designed as a lightweight alternative to conventional metal carabiners where the harness and riser system is compatible.
Technical details
| Weight | 12 g |
|---|---|
| Open length | 170 mm |
| Material | Dyneema / aluminium |
| Maximum load | 18 kN |
| Manufacturer service recommendation | Maximum 5 years or 500 hours, with regular condition inspection |
Sold as a pair: one red and one lime.
Installation
Pull back the protective sleeve, pass the toggle fully through the loop, rotate it 90 degrees to confirm engagement, then return the sleeve to position. AirDesign recommends positioning the toggles behind the risers and close to the harness attachment loops to minimise the possibility of line interference.
Cloudbase note
Soft connectors require correct installation, compatibility and inspection. Cloudbase does not recommend substituting them for an approved harness connector simply for weight saving unless the complete equipment configuration is intended for their use.
